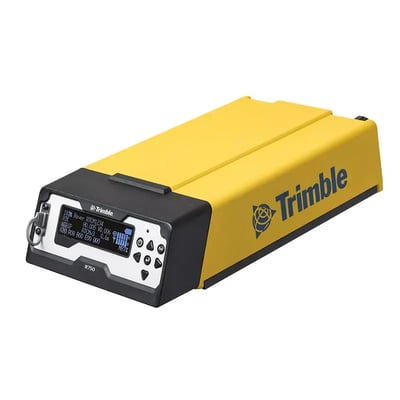

R750 GNSS Modular Receiver

Use it in a variety of locations—onsite cabins, site trailers, in vehicles or on light machines
Place the receiver where it is protected from theft and weather, then place the external GNSS antenna in a location with clear visibility to the sky
Use it as highly reliable base station or rover
As a vehicle mounted rover it can be used for fast, effective grade checking and surface mapping

4G LTE or Wi-Fi gives you access to your base no matter where you are
Receive email alerts, remotely monitor and reconfigure your base stations to eliminate downtime
No need for time-consuming and costly visits to the base station to set up each day or diagnose issues that may arise, particularly for remote or difficult to access locations

The R750 tracks all currently available satellite signals.
GNSS triple frequency tracking for optimized performance (GPS, GLONASS, QZSS, NavIC, SBAS tracking)
Optional Galileo and BeiDou navigation satellite systems

Trimble ProPoint technology – constellation-agnostic, robust positioning engine that enables greater reliability and productivity for rover applications, particularly in challenging GNSS environments
Trimble CenterPoint RTX – delivers near RTK level precision anywhere in the world without the use of a local base station or VRS™ network
Trimble Maxwell 7 GNSS ASIC – provides access to al trackable constellations for greater reliability
Trimble xFill technology – seamlessly fills in for gaps in RTK or VRS connection streams—this allows you to continue to use your rover with RTK precisions for up to five minutes if the connection to your primary correction source is lost

- Connectivity – integrated communications options: 4G LTE modem, UHF, Wi-Fi, and Bluetooth
- Trimble Internet Base Station Service (IBSS) – broadcasts Real-Time Kinematic (RTK) data or Differential (DGNSS) corrections from your base station over the internet via Wi-Fi or the internal 4G LTE modem. This makes it easier and more economical to use high precision GNSS for site positioning or machine control on the construction site over ranges which exceed the limitation of the UHF radio link. IBSS can also be used to augment UHF in areas of poor UHF coverage.
- Trimble AutoBase technology – rapid daily base station setup with a single button push

- Display – advanced four-line slanted front panel display with Power button, Enter, Escape, and navigation arrow keys for easier navigation, receiver configuration and status monitoring

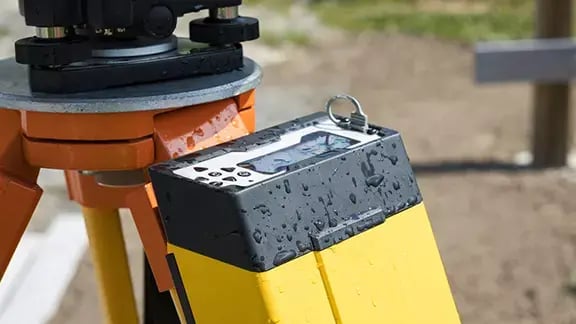

- Durability – IP67 water and dust protection, designed to survive a 1.1 m (3.6 ft) pole drop onto a hard surface
- USB-C port – USB data transfer and communications port with support for USB-C PD (Power Delivery) charging in the office, on site, or on the go to extend operating time
- QR code – convenient connection to the built-in Wi-Fi access point via your smartphone or tablet

Features and Benefits
